高効率マニホールドフラットマウントバルブ

Qingdao Star Machine provides high efficiency Manifold Flat Mount Valves with 1year warranty are designed specifically for dust collector applications. Among the various types of valves used in industrial automation systems, straight-through valves are the most commonly employed. These valves are aptly named as they directly integrate into the individual lines of each application. In the context of pneumatic applications, a manifold refers to "a pipe or chamber that branches into several openings." This implies that multiple valves can be affixed to a single base or manifold, sharing a common air supply and exhaust. This streamlined configuration simplifies pipework and centralizes the valves associated with a particular process.

Straight-through valves are also known as directional control valves when based on a manifold. The MM series submerged pulse jet valves exemplify this concept, offering direct mounting on the air manifold. Manifold Flat Mount Valves are 2-way dust collector valves, they are important for pulsing substantial air volumes into filter bags, facilitating efficient particulate removal.

There are two kinds of series, you see, which include the right-angle thread type and also the submerged type. These types offer connection options that range from 15mm all the way up to 76mm, which is also known as 1/2 inch to 3 inches, if you prefer to think of it that way. The Manifold Flat Mount Valves, these particular valves, they are designed in such a way that they can operate under air pressure conditions that vary a lot, from a low of 0.3 bar to a high of 8.6 bar. It is important to note that this range is quite significant, as it allows for a variety of applications, you know, in different situations where air pressure is a factor. So, essentially, these valves are made to work well within those specific pressure parameters, which is quite interesting, if you think about it.

Product drawing

Manifold Flat Mount Valve CA/RCA25MM

Manifold Flat Mount Valve CA/RCA40MM

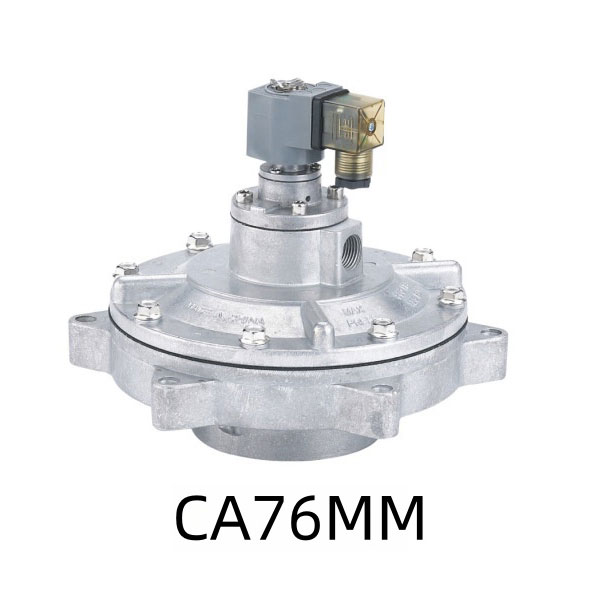

Manifold Flat Mount Valve CA/RCA76MM

Manifold Flat Mount Valve CA/RCA102MM

Order code:

The temperature range of the flanged valves depends on the chosen model and diaphragm:

Nitrile diaphragms: -40°C (-40°F) to 82°C (179.6°F)

Viton diaphragms: -29°C (-20.2°F) to 232°C (449.6°F)
