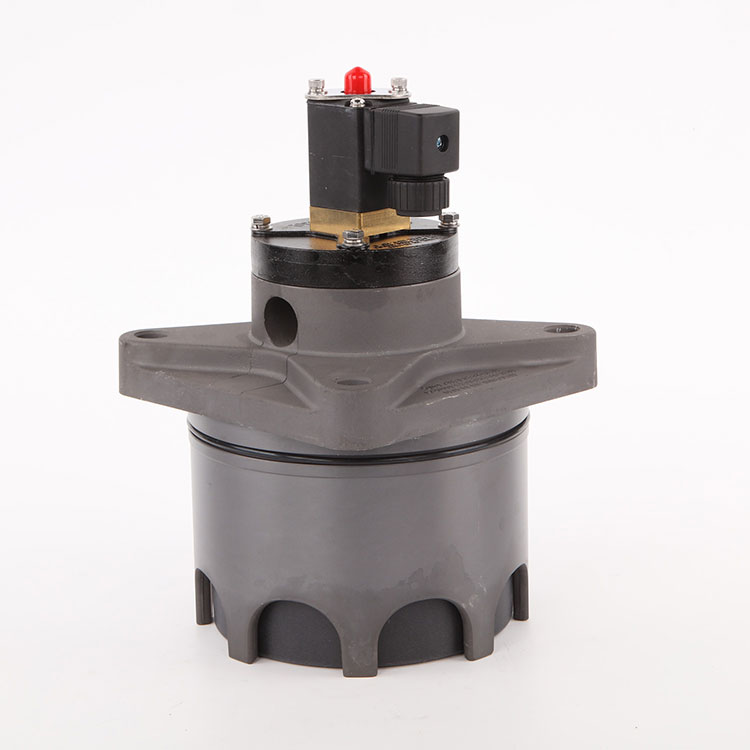

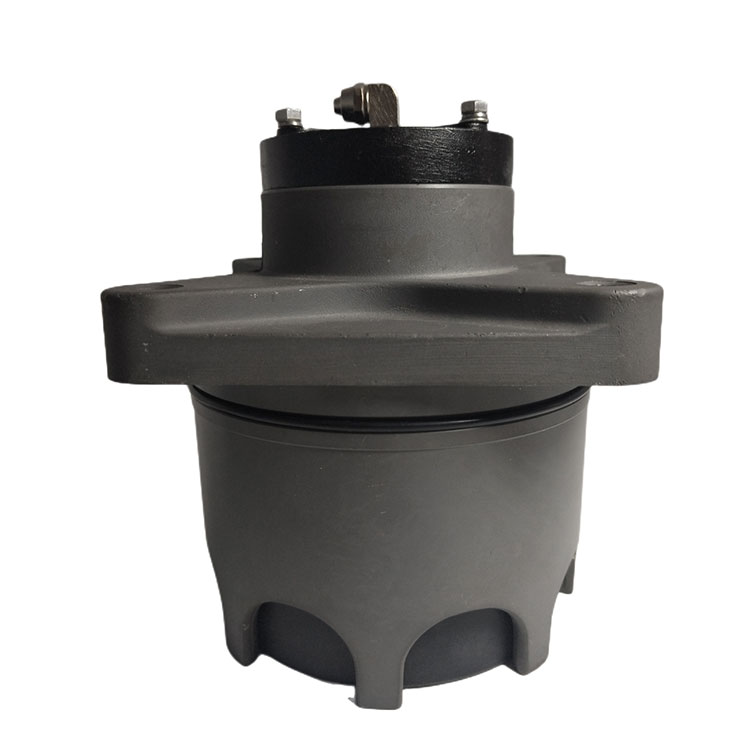

コンパクトパルスバルブ

SMCC high quality Compact pulse valve is a new type of pulse valve, with main advantages including high efficiency, low loss of compressed air, and compact structural dimensions.

Compared with traditional pulse valves, compact pulse valves of SMCC brand have a faster opening time, resulting in very small impact pressure loss. Moreover, due to the easy control of the opening sequence, the optimal gas volume can be selected according to different processes. In addition, the compact pulse valve consumes less compressed air and has a smaller structural size, which means that the spacing of the filter bag is not limited by the size of the valve.

Overall, compact pulse valves are efficient, energy-saving, and compact, suitable for various situations that require high-precision control of gas flow.

Basic information:

Compact pulse valve main parts and similar models:

The main material of main parts of compact pulse valve:

Compact structure of Compact pulse valve Starmachinechina 135:

1.Comparison of Structure between Starmachinechina 135 and diaphragm valves of the same specification:

2. Comparison of installation distance between compact pulse valve Starmachinechina 135 and ordinary diaphragm pulse valve of the same specification

Note: The installation distance of Starmachinechina 135 is the same as 180mm (minimum up to 160mm).

3. Starmachinechina compact pulse valve 135 matching air distribution box diagram (partial)
